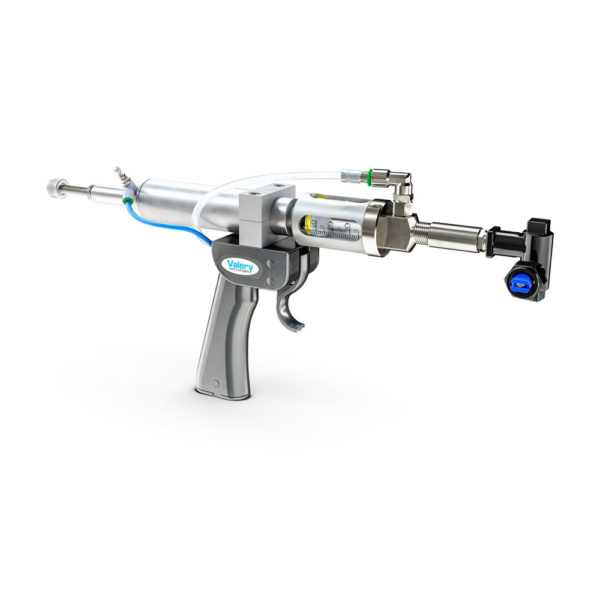

A pneumatic appliance designed to deliver vaccines by spraying them. It is particularly suitable for use in small and medium-size incubators. It can spray controlled volumes to be set by a specific control and adjustment device.
It is extremely light and handy.

A connecting tube to the tank supplies the vaccine solution. Ceramic nozzles are used, which offer precise and constant parameters to be applied specifically to the vaccine being used.

The model has an adjustable capacity from 0 to 30 cc.

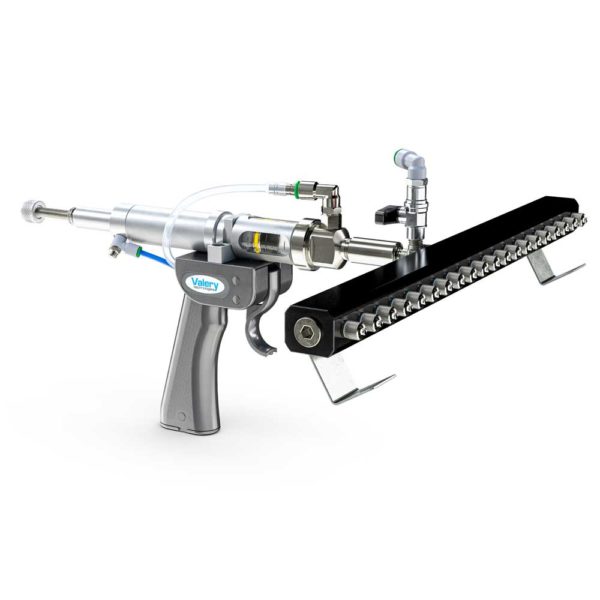

Manual pneumatic device for dispensing gel, consisting of an adjustable feeder at the end of which we
have a bar, whereon a series of needles are lodged.

This device enables the correct distribution on the individual boxes of the exact doses of gel. It is particularly suitable for small hatcheries, so as to ensure a high qualitative standard with a minimum investment.

The model has an adjustable capacity from 0 to 30 cc.

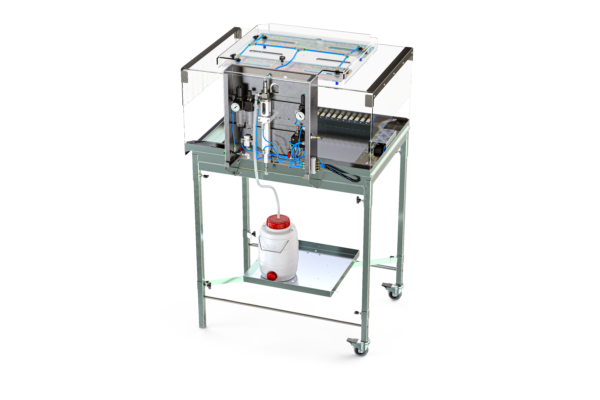

Spray booth for the administration of live vaccines. The correct distribution of the vaccine across the entire box is ensured by four nozzles, suited to the different types of vaccine, with drop sizes ranging from 120 μm to 300 μm. A complete set of nozzles is supplied with the device.

The operation takes place only pneumatically and does not require other than a connection to a compressed air generator (no power supply).

For some live vaccines, the perfect mixture can be ensured by an air bubbler or magnetic stirrer (optional).

Spray booth for the administration of live vaccines. The correct distribution of the vaccine across the entire box is ensured by six nozzles, suited to the different types of vaccine, with drop sizes ranging from 120 μm to 300 μm. A complete set of nozzles is supplied with the device.

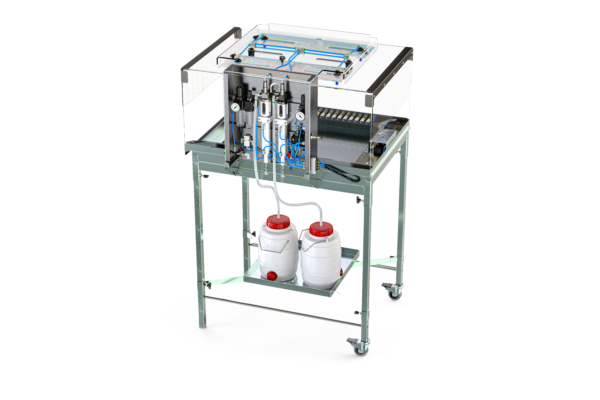

The Dual version combines on the same equipment two separate distribution circuits, so as to enable a dual vaccine intervention with a single transit of the box.

This device ensures a totally independent control of the volume, pressure, and drops size on each circuit. The operation takes place only pneumatically. The perfect mixing required for some live vaccines is ensured by an air bubbler or magnetic stirrer (optional).

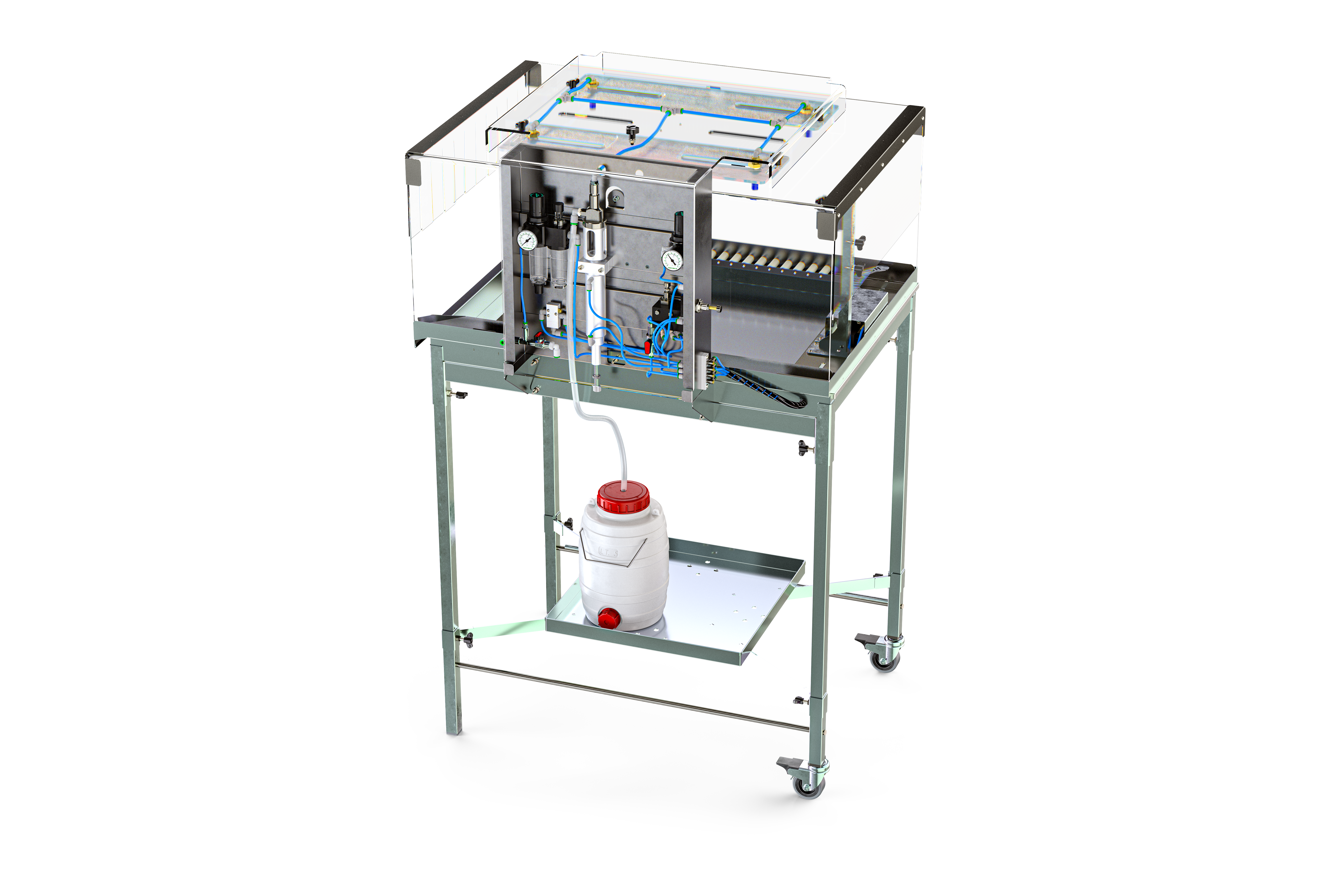

The Elite version differs from the characteristic already described in relation to
Cod. 0900071 as follows:

• metal anchoring of the nozzles to the plexiglass cover;
• the possibility of adjusting the position of the nozzles, freely movable on two axes, to each box size thanks to the special design of the plexiglass cover;
• addition of a locking system that locks the chicks’ box until complete administration of the vaccine dose;
• table of nozzles type and capacity on the cover of the device.

The Elite version differs from the characteristics already described in relation to
Cod. 0900070 as follows:

• the cabinet is equipped with 6 nozzles;
• metal anchoring of the nozzles to the plexiglass cover;
• the possibility of adjusting the position of the nozzles, freely movable on two axes, to each box size thanks to the special design of the plexiglass cover;
• addition of a locking system that locks the chicks’ box until complete administration of the vaccine dose;
• table of nozzles type and capacity on the cover of the device.

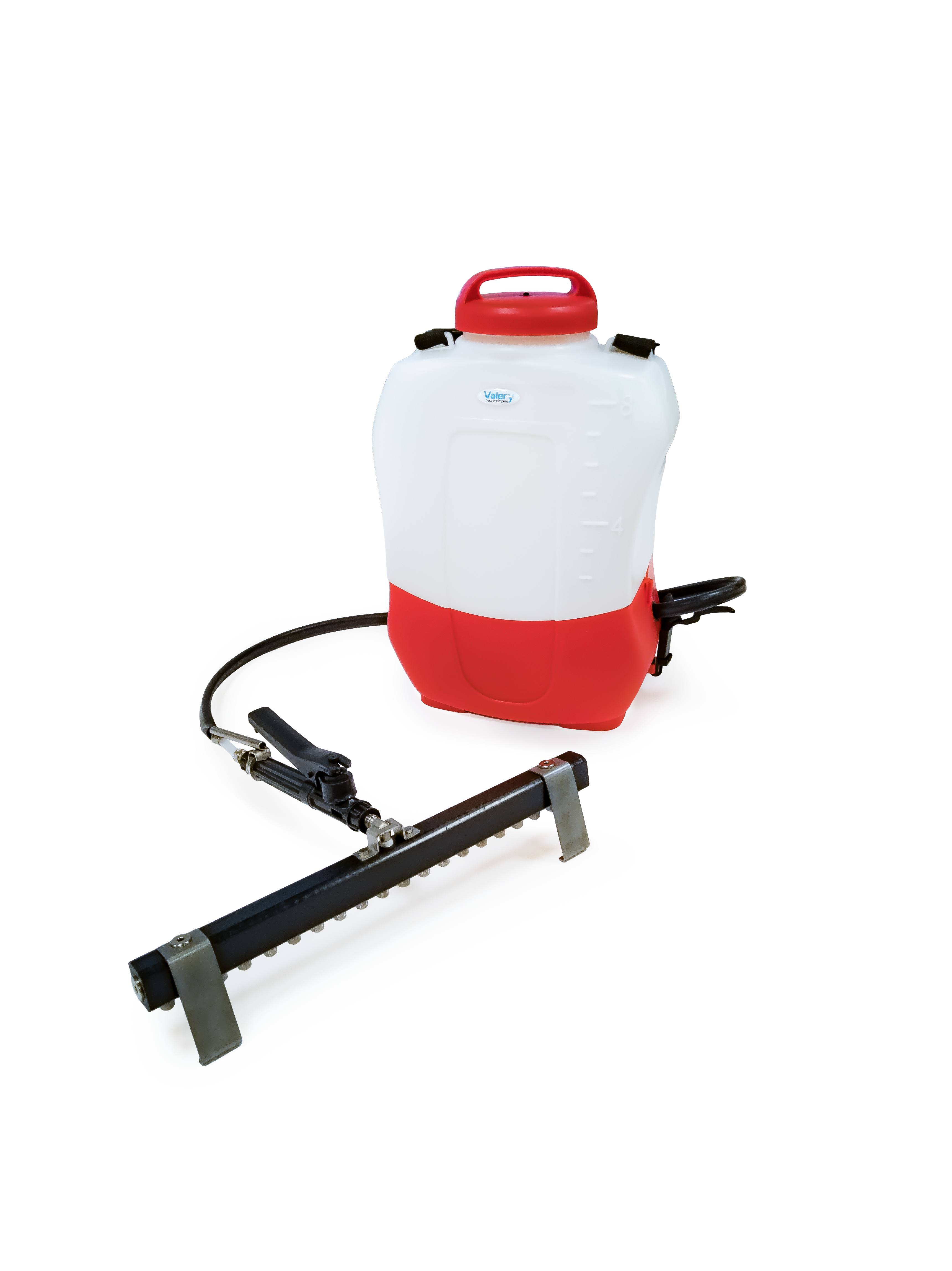

The E – Wilma gel model dispenses vaccines in a gel suspension.

An electronic control system enables the machine to deliver precise volumes according to the choices and settings applied.

The pressure is constant, and the command to activate the dispensing of the gel occurs by simple pressure on the hose lever.

Distribution is by means of a bar equipped with needles to enable correct distribution to individual boxes.

Programmable by smartphone.

COD: 0900031

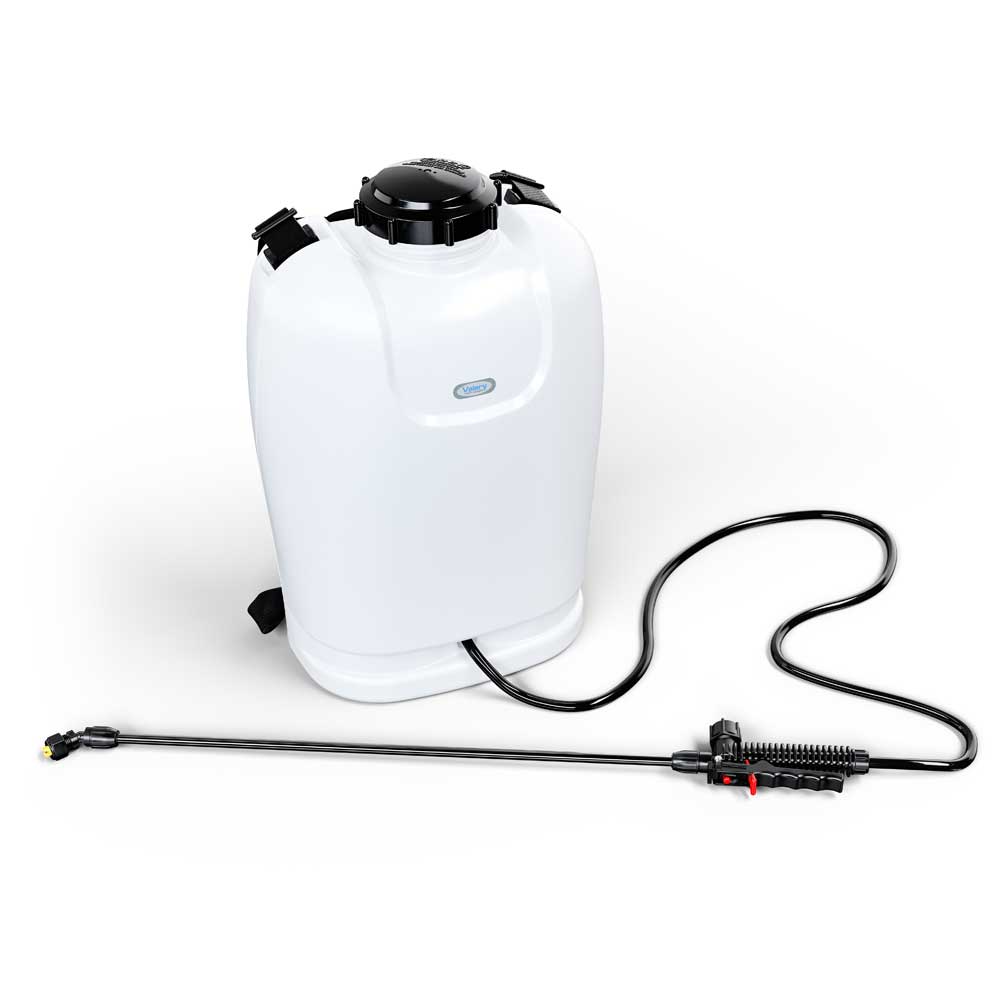

Electric backpack pump for spray vaccination inbox or on litter. The tank has an 18 l capacity and is powered by an electric pump with an autonomy of three continuous hours.
The device is also fitted with an extra battery.
An electronic control system ensures constant flow and pressure. The nozzles supplied to cover the administration needs for all live vaccines in use.

The model equipped with the timer allows you to program precise and constantly repeatable volumes that can be dispensed on standard animal modules, such as individual crates or cages in series.

Cod. 0900052 without a timer

COD: 0900053 with timer

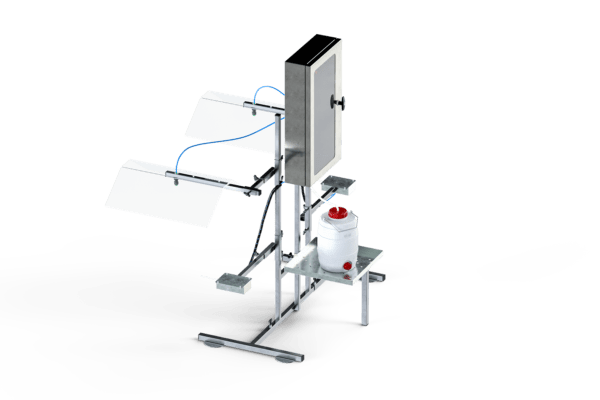

Automatic device for spray vaccination in medium / large hatcheries placed directly on the transport lines of the boxes containing the chicks before delivery.
Regulation systems allow you to ensure a homogeneous distribution across the entire surface of the box. It does not require any electrical supply, just the connection to an air compressor.
The working pressure is from 4 to 6 bar.

The device ensures a perfect distribution through a double circuit dispensing spray on the chick’s boxes.

Automatic equipment for large and medium hatcheries, suitable for the distribution of gel on boxes of day-old chicks, before delivery, through a special series of adjustable needles placed on a horizontal bar.
Regulation systems allow you to ensure precise quantity and uniformity in every type of plant.
When operating at high speed, the machine can be equipped with a double pumping device with alternating motion.

It does not require any electrical supply, just the connection to an air compressor.

The device ensures a perfect distribution of gel on the chick’s boxes.

The working pressure is from 4 to 6 bar.

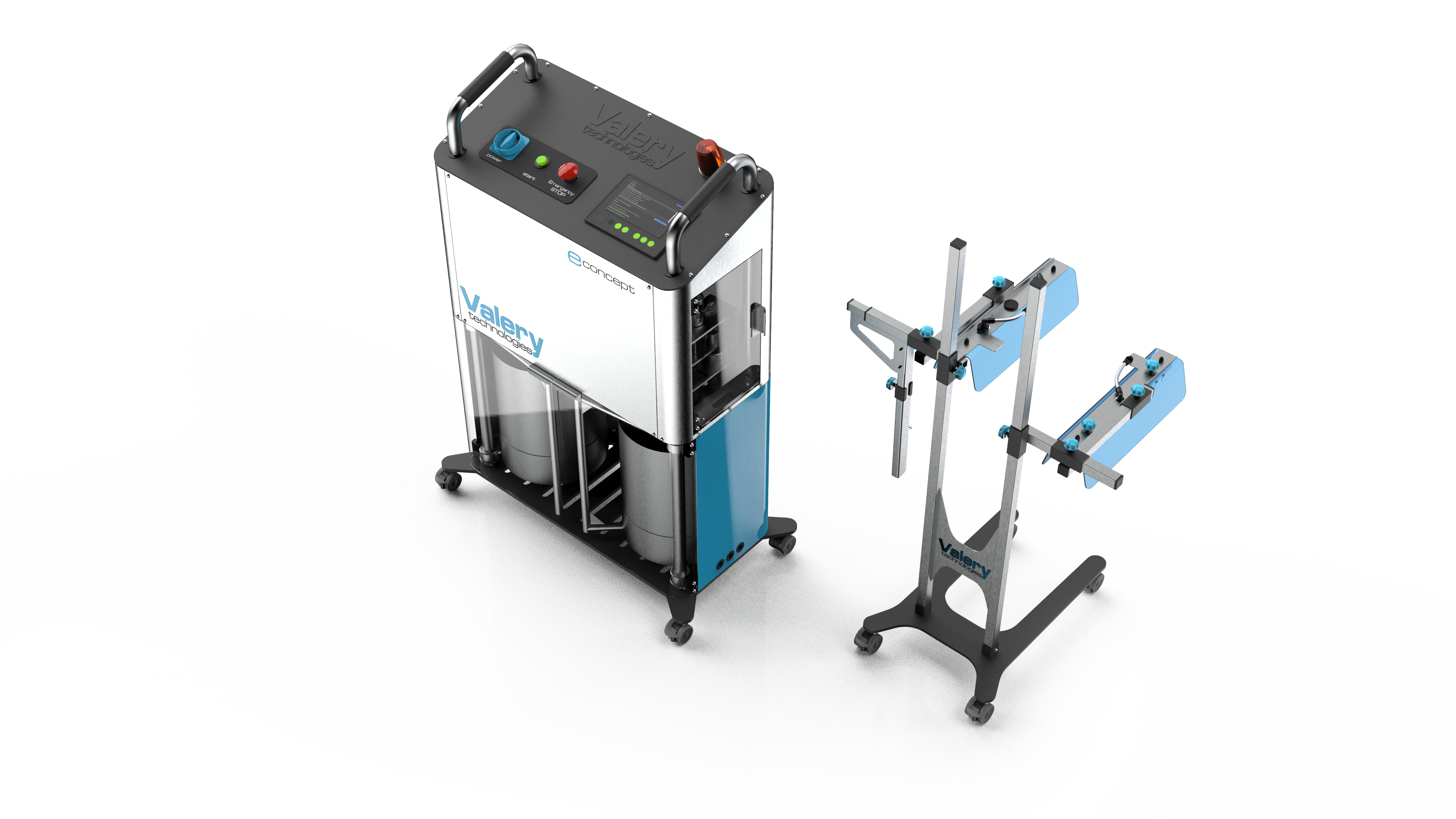

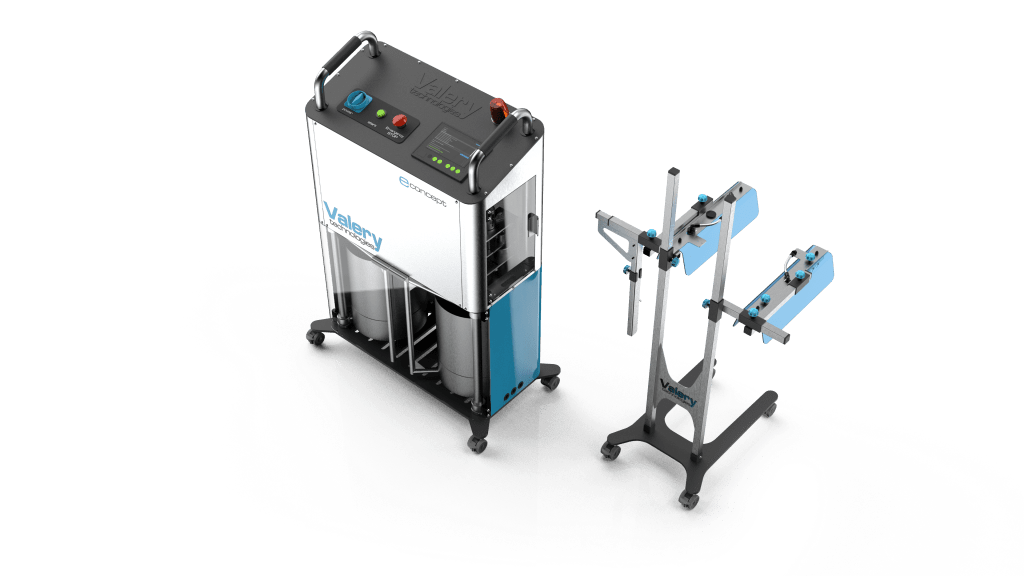

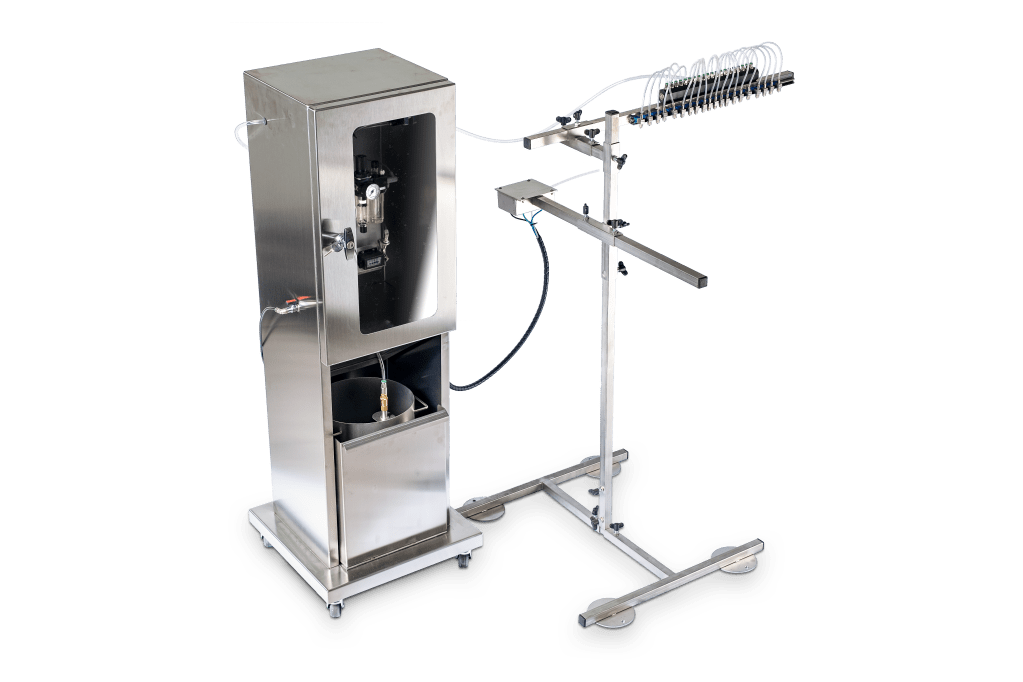

Automatic in-line device for spray vaccination in large and middle-sized hatcheries.
It is characterized by the presence of a PLC (programmable logic controller).

The machine rests on a structure made entirely of steel, whose placement is envisaged by inserting it under the hatchery conveyor belt.
An adjustable photocell on a special cursor detects the speed and position of the transiting boxes.
Once the necessary parameters are set, the machine automatically adjusts all functions capable of ensuring a perfect distribution through a double circuit dispensing spray or gel on the chick’s boxes.

Connectable with the net.
